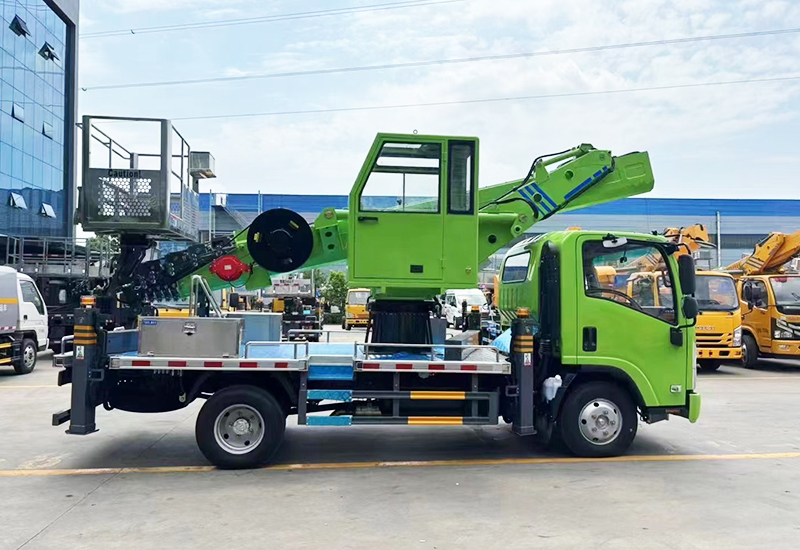

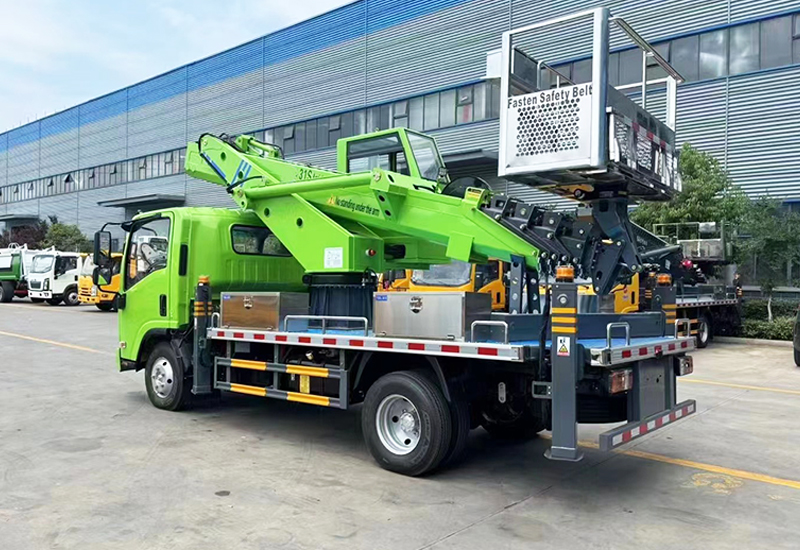

Aerial work vehicles
Aerial work vehicles usually use high-quality hydraulic, electrical and control systems to ensure stable operation under various working conditions, and have multiple safety protection measures, such as anti-rollover control, working arm locking, safety belts, etc., to ensure the safety of the operator. In addition, the aerial work vehicle has a telescopic arm structure, which can achieve multi-angle rotation and height adjustment, allowing the operator to complete the task quickly and accurately. These vehicles are adapted to various different work scenarios, such as construction sites, power line maintenance, street light installation, etc., and are suitable for the development of specialized small and medium-sized enterprises, and the products have high technical requirements.
Technical specifications
Curb weight |
4365kg |
Overall size |
5995*2080*3100mm |
Working height |
30m |
Working platform load |
200kg |
Tire size |
7.00R16 |
Leg type |
Frongt "V" and Rear "H" type |
Engine |
4HK1CN6LB , 120HP |
Boom structure |
Hexagonal working arm, synchronous extension and retraction |
Platform side operating range |
12-16m,20m,23m |
