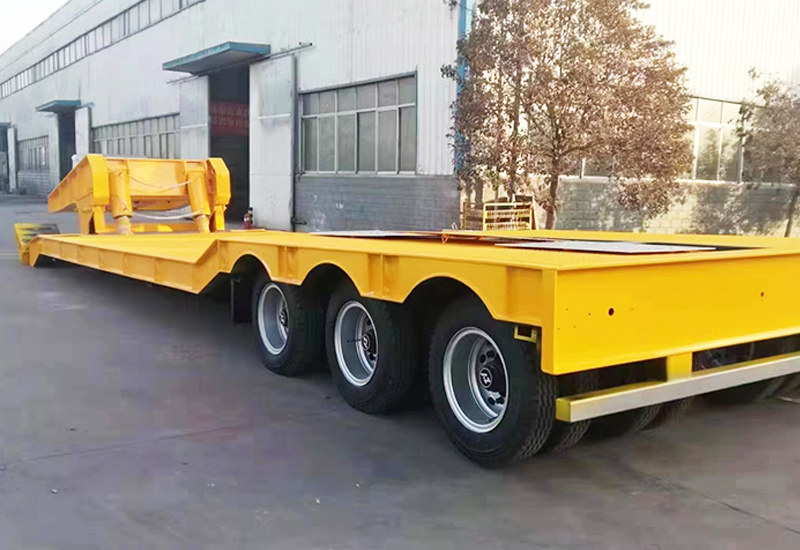

Lowbed Semi Trailer
The advantages of low-bed semi-trailers mainly include their wide range of applications, high stability and safety, and strong transportation capacity.
Low-bed semi-trailers are designed mainly for transporting heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty goods. Because the lower its center of gravity, the better its stability and safety, it is particularly suitable for transporting oversized goods and the stronger its ability to pass overhead obstacles. This type of vehicle has a wide range of loads, which can reach 20-150 tons, and is suitable for the transportation of a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials.
Technical specifications
Curb weight |
15000kg |
Overall size |
16000*3000*700mm |
Loading weight |
50000kg |
Leg |
JOST |
King pin |
2 inch/3.5 inch optional |
Axle |
13T BPW/FUWA |
Suspension |
Mechanical suspension/Air suspension |
Tire |
315/80R22.5 , 16+1 pcs |
Diesel generator |
1 Group |
Type |

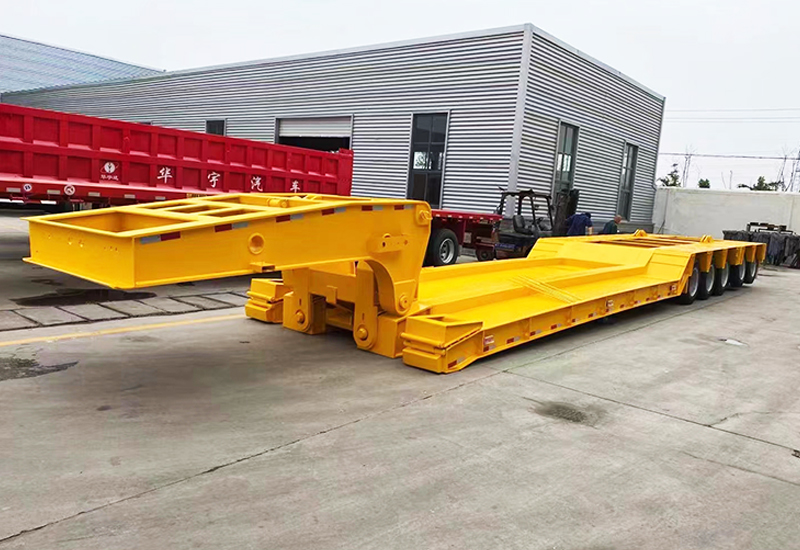

Adjustable gooseneck |
