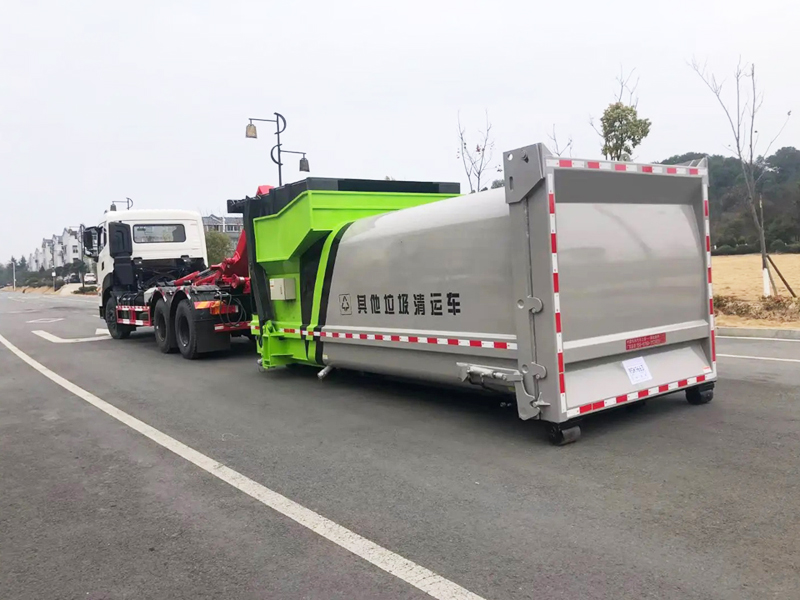

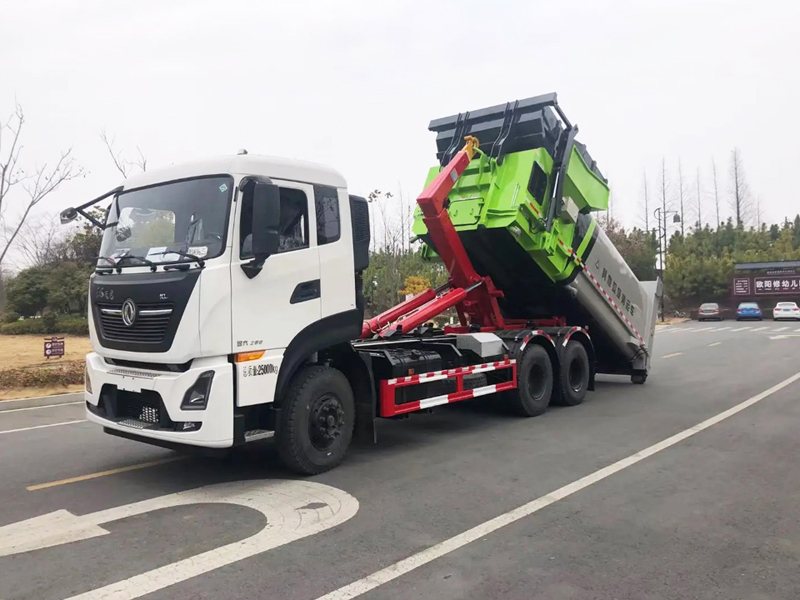

Hook-arm Garbage Truck
- Brand: Dongrun
- Type: DongFeng 6X4 25CBM Hook-arm Garbage Truck
Hook-arm Garbage Truck
The advantages of hook-arm garbage trucks mainly include flexible structure, environmentally friendly loading, convenient loading, good sealing, classified processing, one car with multiple boxes, safe and stable, easy to operate, and high efficiency and energy saving.
1. Flexible structure: One car can be equipped with multiple buckets, and one car can maintain the operation of several garbage transfer points. All mechanical loading and unloading, the upper part and the original car chassis can be flexibly separated.
2. Environmentally friendly loading: The car body can be placed in residential areas, which can effectively avoid the noise construction and dust pollution of excavators or forklifts.
3. Convenient loading: Manual construction and operation can be easily carried out, and garbage can be directly pushed into the car body with a wheelbarrow for loading.
4. Good sealing: Hydraulic locking, unique rear door design, good sealing effect, and the box body is a tarpaulin sealed design.
5. Classified processing: The car body separation mode of hook-arm truck + solid waste transfer box can effectively solve the problems of urban decoration garbage with nowhere to pile up and serious pollution.
6. One vehicle can be equipped with multiple bins: One hook-arm garbage truck can be equipped with multiple hook-arm garbage bins for recycling and transportation, which improves the transportation capacity.
7. Safe and stable: The hook-arm garbage truck uses a double-cylinder hydraulic power unit, which is driven by electricity. The hook arm can be controlled by one button, and it can be dragged onto the vehicle through the guide rail. It can be pulled and moved at any time, which is convenient and fast. The hook-arm garbage truck is equipped with a locking mechanism, which can securely fix the hook-arm garbage bin on the hook-arm truck. It is stable and does not shake during transportation, which is safer.
8. Easy to operate: The vehicle is equipped with a hydraulic control system inside and outside. The staff can control the loading of the hook-arm bin in the vehicle, and the garbage dumping can be completed automatically when it is transported to the garbage station, which improves the efficiency of garbage transportation operations.
9. High efficiency and energy saving: Hook-arm garbage trucks can be widely used in garbage disposal in urban streets, communities and schools. One vehicle can be equipped with multiple garbage buckets, which are placed at various garbage collection points. The connection point at the front end of the garbage bin in the station is hung, and the garbage bin is pulled to the back seat of the vehicle. At this time, the vehicle can be started to transport the garbage to the garbage disposal station for self-unloading dumping. One vehicle can maintain the garbage transfer task of several garbage collection points, with high efficiency and low investment.
Technical specifications
GVW
25000kg
Curb weight
13205kg
Overall size
8300*2500*3250mm
Effective volume
18CBM
Wheel base
4350+1350mm
Tire size
11.00R20
Engine
Cummins brand
Horse power
260HP
Emission standard
Euro 2
Displacement/output
8300ml/191kw
